| Quantity: | |
|---|---|
1.Color: orange, green or customized.
2.Pump: DF pump, BF pump, AC pump

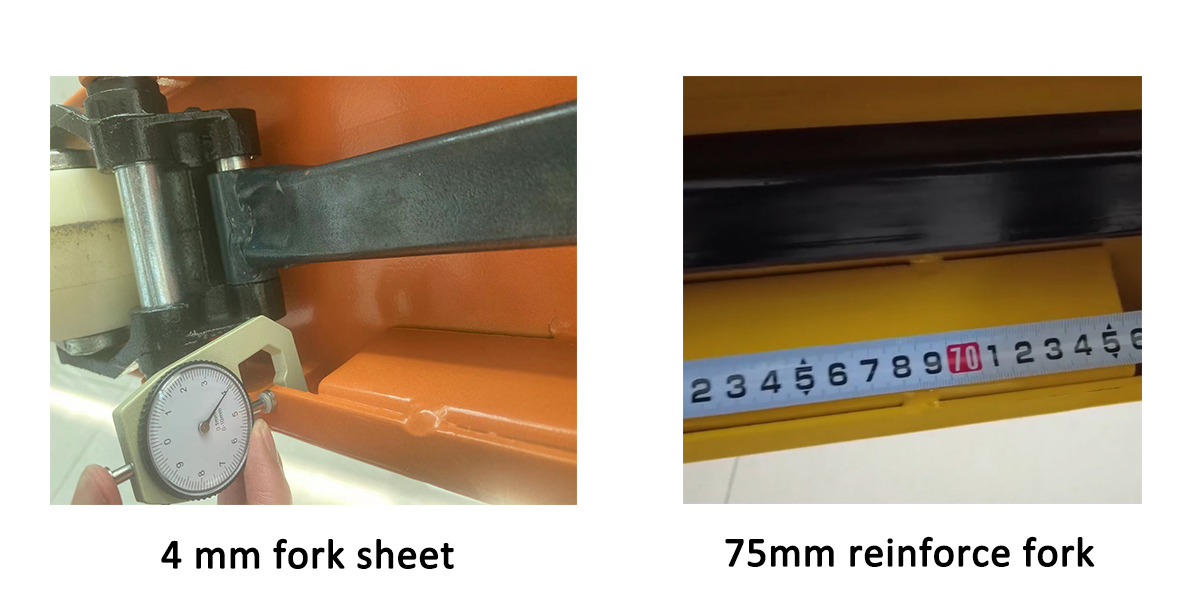

3.Fork sheet:2.0 ton for 3.0mm, 2.5 ton and 3.0 ton for 4.0mm

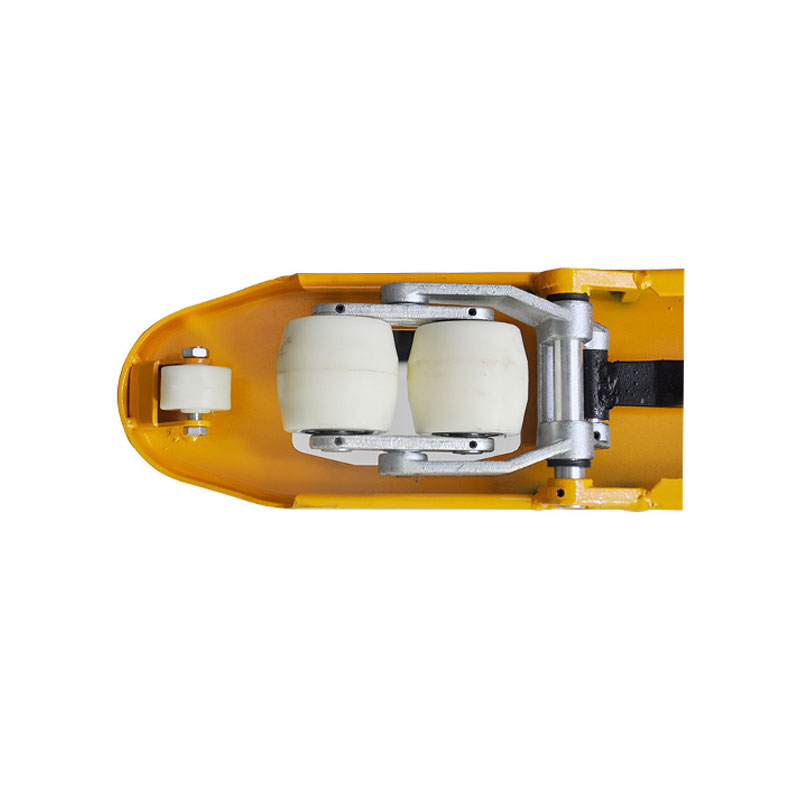

4.Wheel: Nylon, PU, Rubber, Aluminum core PU wheel, Aluminum core rubber wheel

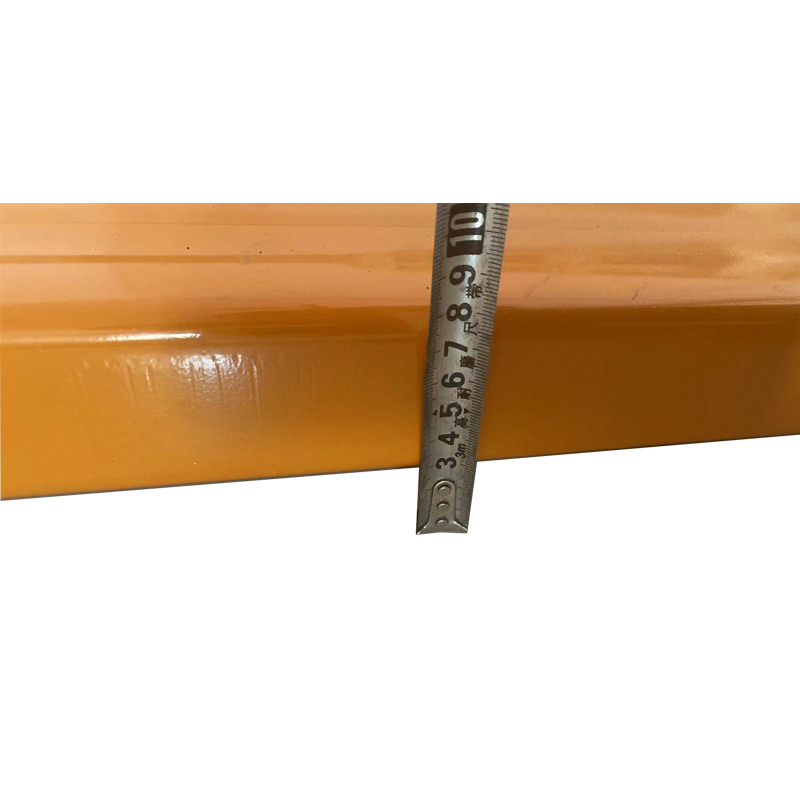

5. Fork bottom reinforcement treatment, length:75mm
Advantage:
-Rubber coated handle comfortable even under extreme temperature conditions.
-Fully sealed galvanized hydraulic unit housing.
-Single valve cartridge for easy maintenance.
-Powder coated chassis made of high grade steel.
-Lead in and lead out rollers reduce damage to pallets.
Note:
1.Keep feet out from underneath load.
2.Balance load securely before moving it.
3.Don't load beyond capacity.
| Hand Hydraulic Pallet Truck | |||||||||
Capacity (T) | Normal height of fork (mm) | Lifting height of fork (mm) | Fork size (mm) | Total fork width (mm) | Fork length （mm） | Fork thickness (mm) | Front wheels (mm) | Rear wheel (mm) | Weight (kg) |
| 2 | 80/85 | 190/200 | 55*160 | 550/685 | 1150/1220 | 3 | 70*80 | 50*180 | 64-69 |
| 2.5 | 80/85 | 190/200 | 55*160 | 550/685 | 1150/1220 | 4 | 70*80 | 50*180 | 67-73 |
| 3 | 80/85 | 190/200 | 55*160 | 550/685 | 1150/1220 | 4 | 70*80 | 50*180 | 67-73 |
| 5 | 80/85 | 190/200 | 55*160 | 550/685 | 1150/1220 | 6 | 70*80 | 50*180 | 130-140 |
The company always adheres to the highest standard of customer satisfaction and high-quality products as the measurement standard of the company's work
