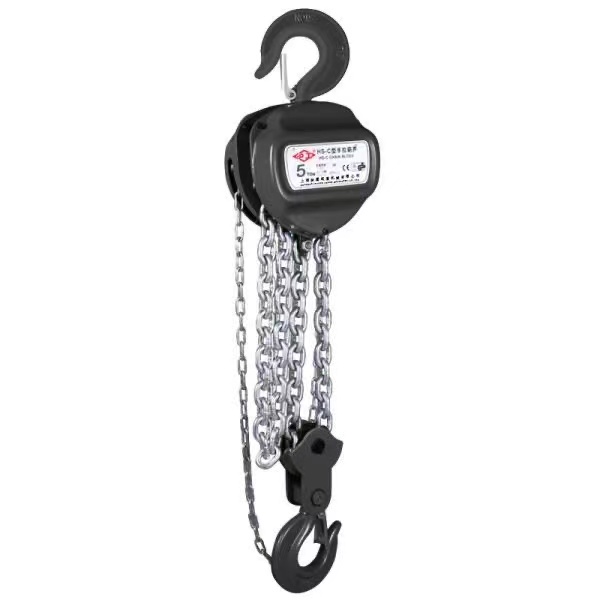

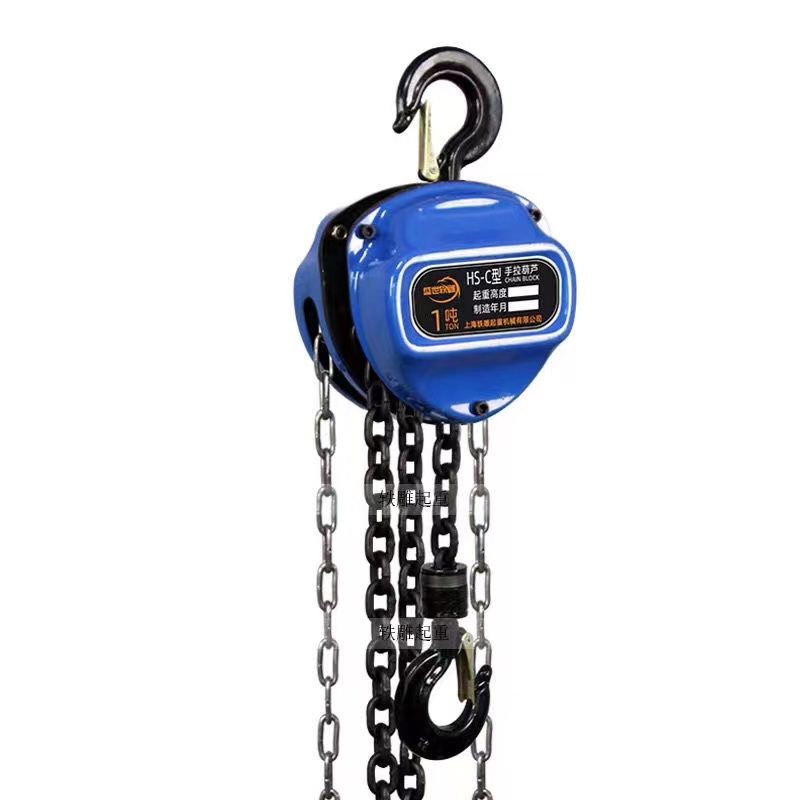

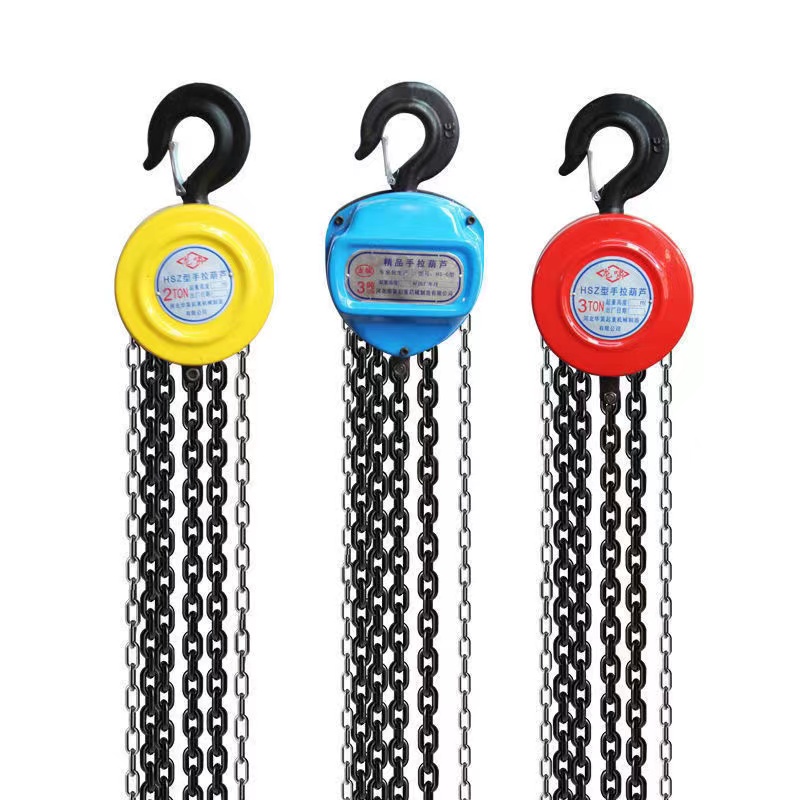

HSZ Chain Block

The chain block is suitable for short-distance hoisting of small equipment and goods. The lifting weight generally does not exceed 10T, the maximum can reach 20T, and the lifting height generally does not exceed 9m. The shell of the chain hoist is made of high-quality alloy steel, which is sturdy and wear-resistant and has high safety performance. When the chain pulley block lifts the heavy object upwards, pull the manual chain clockwise, and the hand sprocket rotates. When descending, pull the hand chain pulley counterclockwise, the brake seat is separated from the brake pad, the ratchet is stationary under the action of the pawl, and the five-tooth long shaft Drive the hoisting sprocket to run in the opposite direction, so as to smoothly drop the heavy objects.
Availability:
Quantity:
Inquire Add to Basket

Product Description

HSZ-C types Construction manual lifting chain hoist hand chain block property :

1. Load limiter is available at extra cost

2. Low effort to lift maximum load

3. Premium grade alloy load chain and zinc plated hand chain as standard

4. Drop forged and expertly heat treated hooks for great strength and long wearing

5. Construction chain block capacity ranges from 1t to 20t, heavy duty 30t, 50t is available



Advantage of Chendiao brand HSZ-C types Construction manual lifting chain hoist hand chain block

1. The chain hoist lifting load from 0.5T to 20T, Minimum headroom required and very versatile in operation

2. The chain hoist system use automatic double-pawl braking system

3. The lifting chain hoist chain guides provide smooth chain operation

4. Roller of the chain hoist bearing supported load sheaves for avoiding abrasion

5. The chain of chain hoist are made of special alloy steel that is exclusively

6. Lifting chain hoist use drop forged hooks to ensure superior quality and safety

7. The block of the chain hoists are in high efficiency.

8. Manual hand chain block surface : Automotive painting.


HSZ-C Type Chain Block

Model

HS-C1

HS-C2

HS-C3

HS-C5

HS-C10

HS-C20

Capacity(t)

1

2

3

5

10

20

Lifting Height(m)

2.5

2.5

3

3

3

3

Test load(t)

1.5

3

4.5

7.5

12.5

25

Min Distance between hooks(mm)

306

444

486

616

700

890

Chainpull to lift full load(N)

304

314

343

383

392

392

No. of  load chain fall lines

1

2

2

2

4

8

Diameter of  load chain(mm)

6

6

8

10

10

10

N.W(kg)

10

14

24

36

68

156

G.W(kg)

11.5

17

28

45

83

194

Packing measurement

L × W × H

(cm)


30×24×18



33×25×19


38×30×20


45×35×24


62×50×28


70×46×75



Product Picture Details

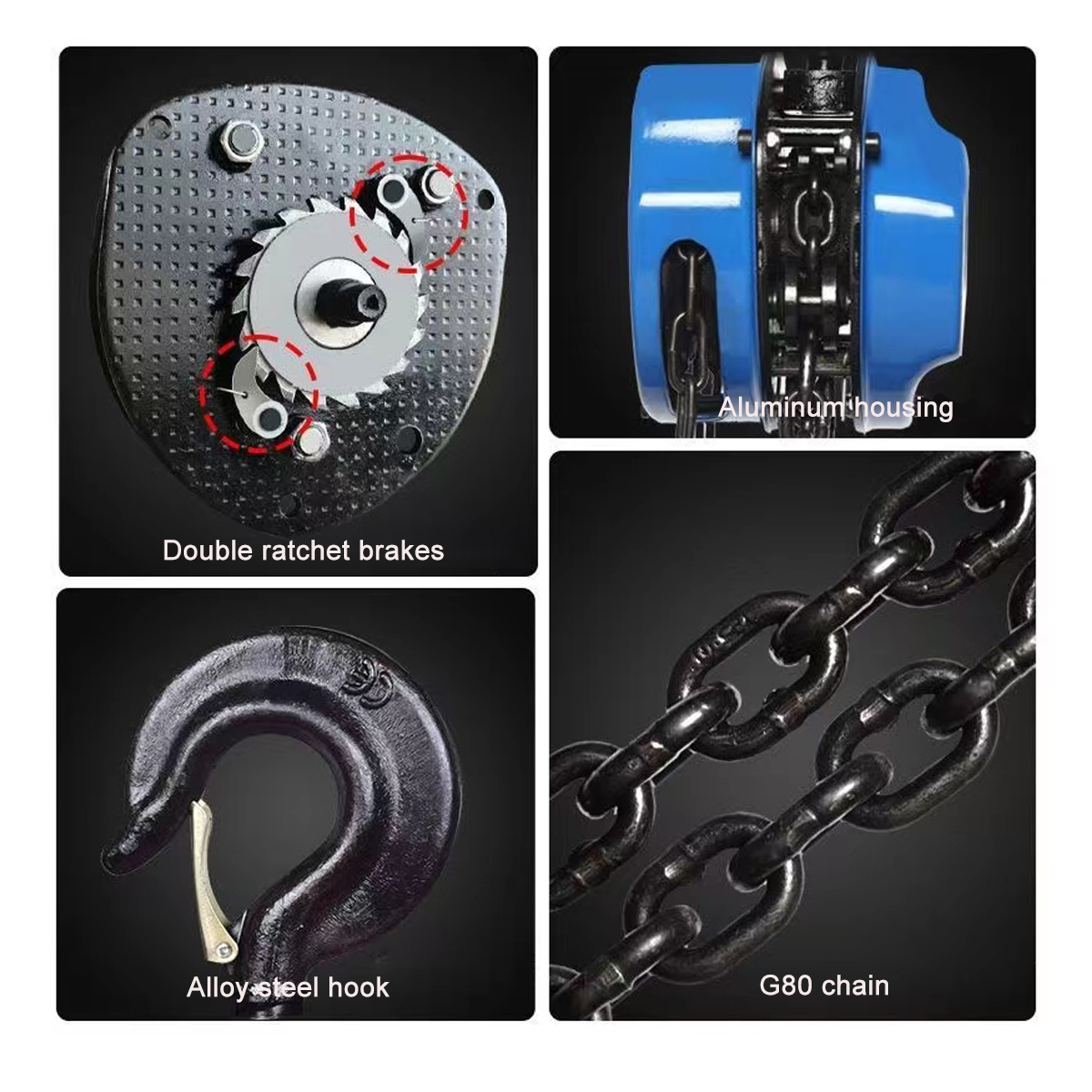

Chain Block Details
