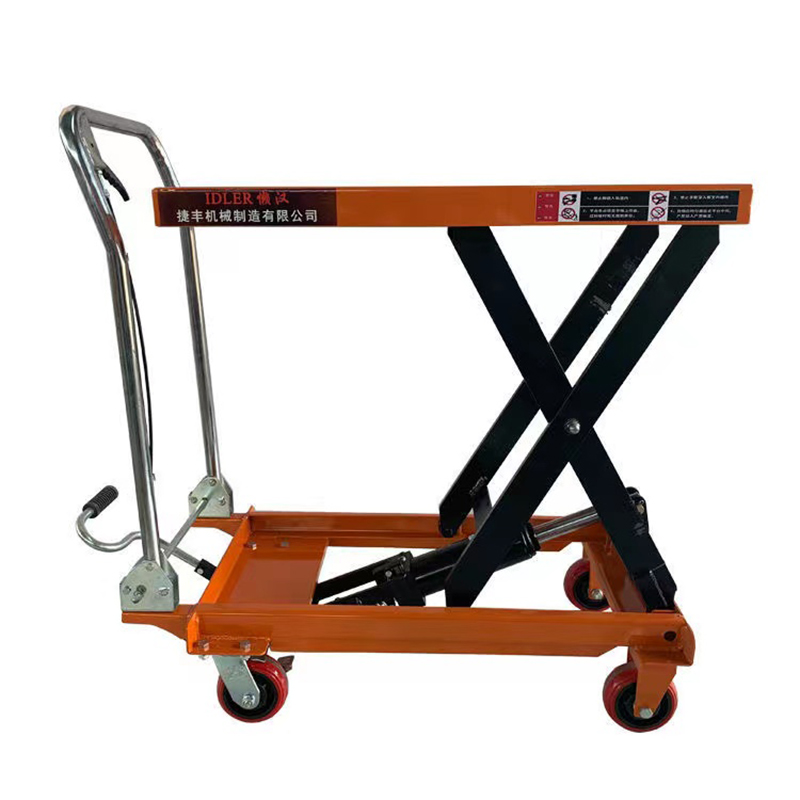

Manual Hydraulic Small Scissor Lift

Single Scissor Hydraulic Lift Trolley equiped with high quality hydrauliccylinder,spring engaged release handle,ergonomics pedal and reliable parking brake. the frame made with high-strength steel. it makes the trolley more safer, reliable, long service time and easy to use.
Availability:
Quantity:
Product Description

Feature:

1. High-Quality Table: The table of the elevating cart adopts the upgraded plastic spraying process, which is oil-proof and anti-corrosion, and much easier to clean after handling;


2. Strong Power: Our lift table is equipped with a leak-proof sealed pump, which has a super load-carrying capacity; the single scissor structure provides the stable support; and a safety valve is provided to prevent injuries during operation.


3. Simple Operation: The Hydraulic Table Cart is equipped with a extended non-slip pedal, which can be easily raised with your feet; and it is also equipped with a quick release handle, which can be quickly lowered by lightly holding it. Both of the pedal and the handle can be easily removed and can be replaced at any time.


4. Lockable Wheels: The scissor lift is equipped with two durable universal wheels, which can change the direction at 360°; meanwhile the wheels have powerful brakes for stably stopping anytime and anywhere, easy to load and unload.


4. Wildly Use: the hydraulic lift can help you easily move goods, is widely used in factories, warehouses, garages, repair shops, supermarkets and other material handling sites.

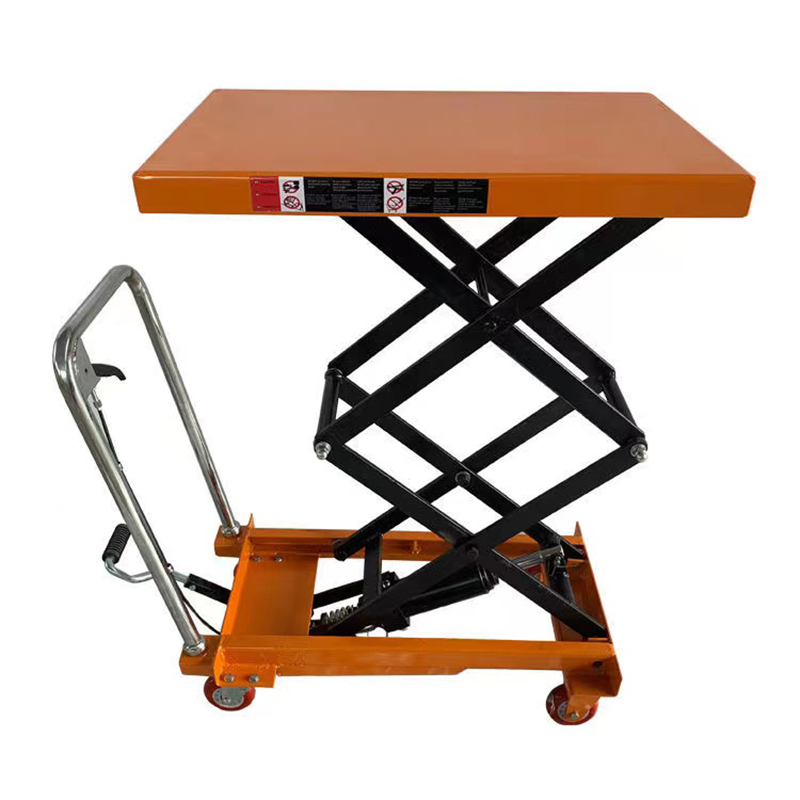

Small Scissor Lift
Capacity (KG)Table size (mm)Max height (mm)
Min height (mm)
150
700*450*35
720
210
300
815*500*50
900
280
500
815*500*50
900
280
350
905*500*50
1300
350
500
905*500*50
1500
360
1000
1000*510*55
1000
415
1000
1200*610*80
1000
380
1500
1200*610*80
1000
380

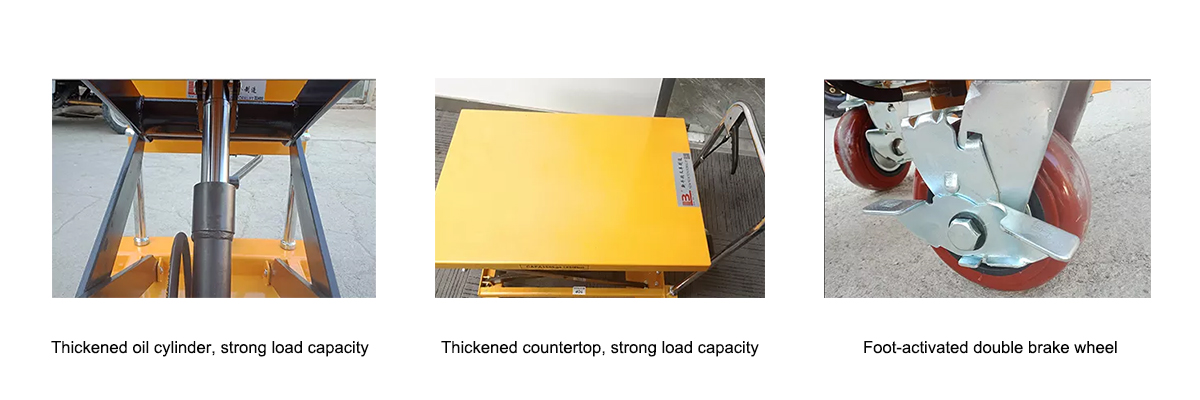

Product Picture Details

scissor lift
