Capacity: 0.5T-20T
Thick friction discs; Safety latches.
Grade 80 load chain-made by wafios machine; Safe factor 4: 1.
More than 3 rounds inspections before export out, everyone will be inspected before delivery.
Excellent quality, top in China, always the leader.
Excellent after-sale serve, market agent support and protection.
Sample order and trail order are acceptable.
The chain block can be attached on the trolley, and used as a travelling chain block. It is also suitable to monorail overhead converying system, hand travelling crane, and jib crane.
Feature:

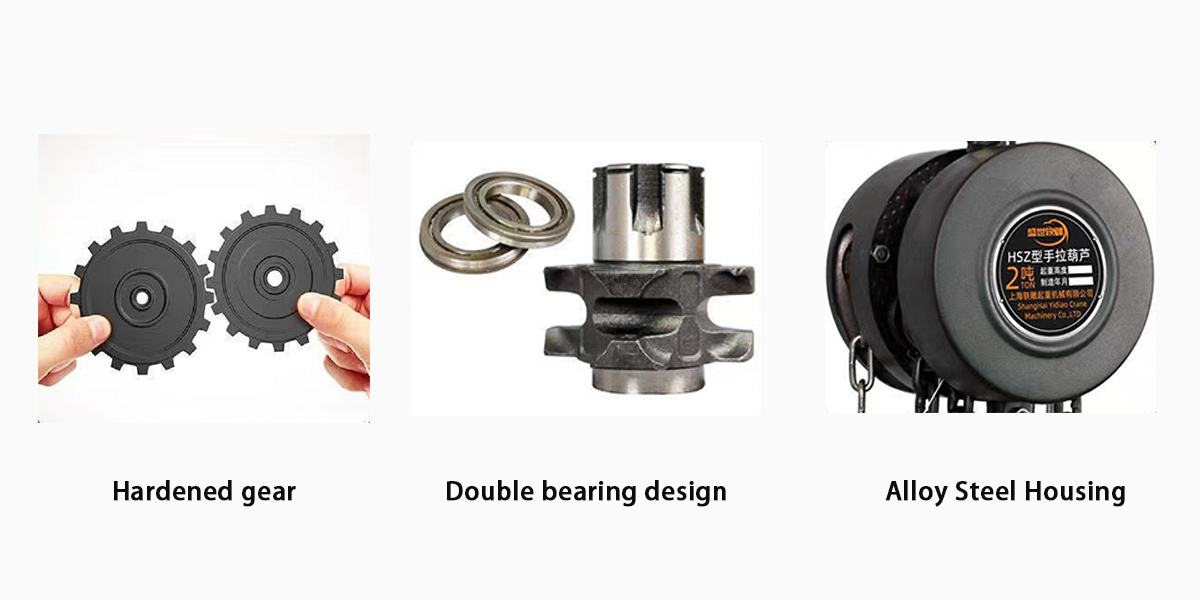

1.Automatic double pawl braking system
2.Lightweight robust construction
3.Low effort to lift maximum load
4.Fully forged hooks
5.Fully machines lift wheel
6.ISO high grade alloy load chain
7.Zinc plated hand chain as standard
8.Extra thick asbestos free friction discs
9.Double cover protection (optional)
10.black or galvanized load chain
11.Durable baked enamel paint protection
12.Overload protection device available upon request

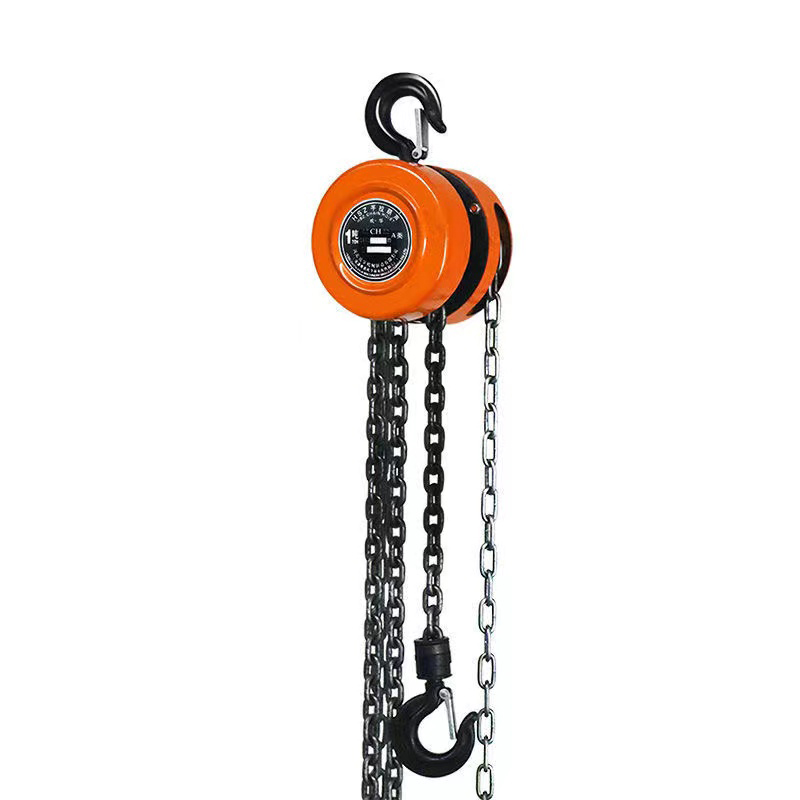

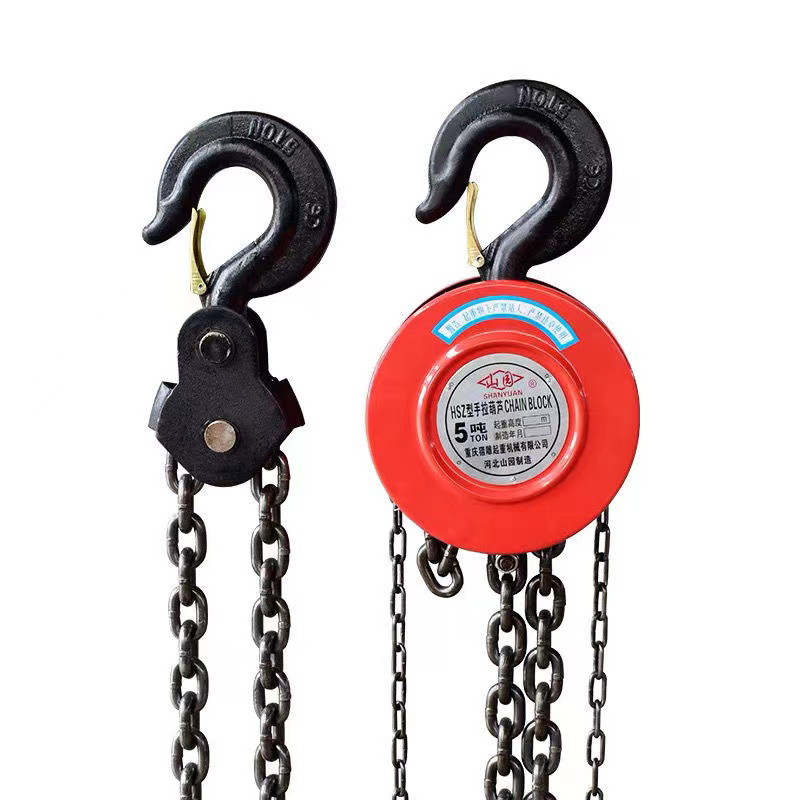

Round type chain pulley block | |||||||
Capacity(T) | lifting height(m) | Test load(T) | Min.headroom (mm) | Effort required to lift rated load(N) | No. of load chain falls | Dia. of load chain(mm) | N.W. (kg) |
0.5 | 2.5 | 0.75 | 240 | 221 | 1 | 6 | 8 |
1 | 2.5 | 1.5 | 270 | 304 | 1 | 6 | 10 |
2 | 3 | 3 | 380 | 314 | 2 | 6 | 16 |
3 | 3 | 4.5 | 470 | 343 | 2 | 8 | 24 |
5 | 3 | 7.5 | 600 | 381 | 2 | 10 | 36 |
10 | 3 | 15 | 700 | 392 | 4 | 10 | 68 |
