Introduction:

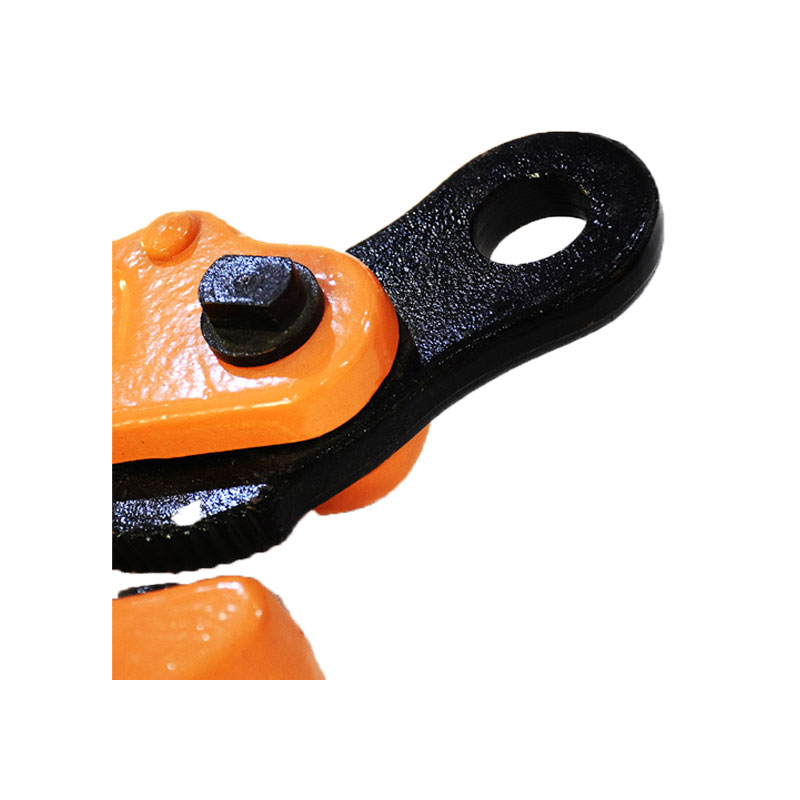

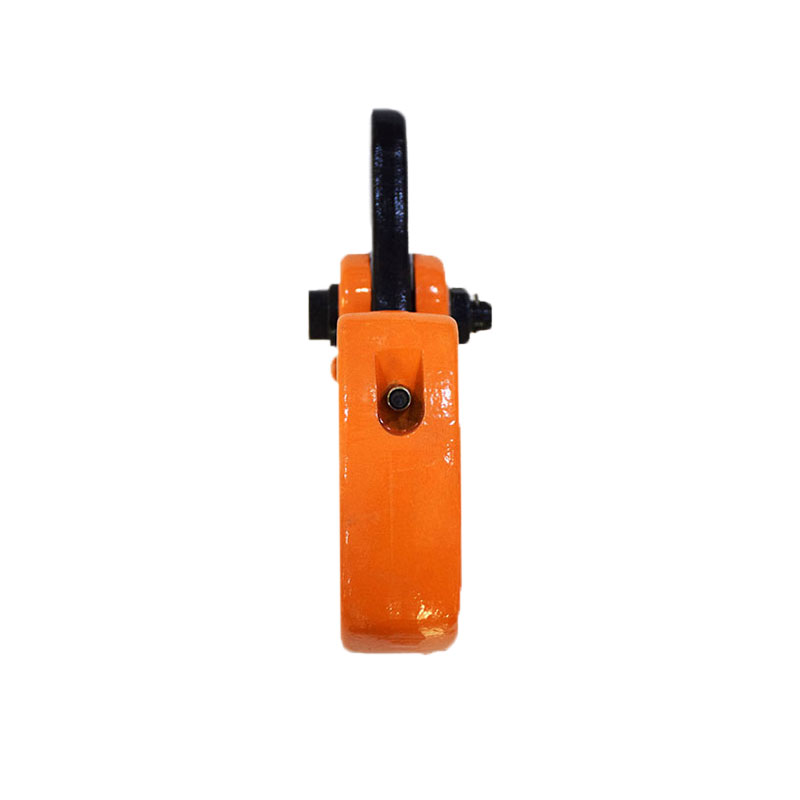

DMF forged lifting clamp is specially used in the lifting of steel plate and steel section,which has simplestructure and high safety performance, easy to use and unload.
The clamp is made of super alloy steel, forged and tempered, small size but high strength and durability.
Pressure Angle of center line and the threaded plane Angle with the thickness of the different changes within 30 degrees to 80 degrees, with the increase of hoisting clamping force is proportional to the increase.

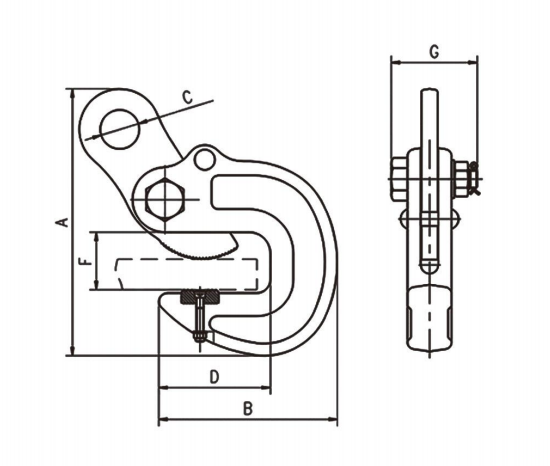

| DMF forged lifting clamp | ||||||||
| WLL (T/2 pcs) | Thickness of the interlayer | A (MM) | B (MM) | C (MM) | D(MM) | F(MM) | G(MM) | Weight(KG) |
| 1 | 0-15 | 160 | 115 | 22 | 60 | 27 | 65 | 2.8 |
| 2 | 0-20 | 180 | 150 | 28 | 80 | 41 | 75 | 5.2 |
| 3 | 10-30 | 260 | 170 | 36 | 90 | 57 | 84 | 7.8 |
| 5 | 15-45 | 310 | 210 | 44 | 130 | 75 | 110 | 11.8 |
