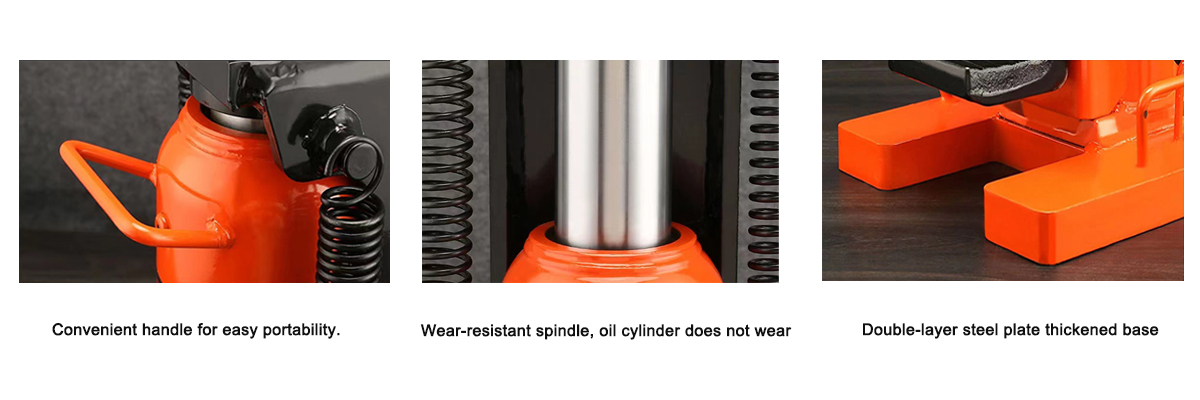

This hydraulic toe jack uses R22 or R32 hydraulic oil. Do not use other oil bodies to avoid affecting the normal use of the jack. When refueling, please place the jack in a normal upright state. Refueling until the oil overflows from the refueling space is full of oil. The main shaft of this product is specially The handling is extremely smooth, which reduces the friction between the upper and lower oil seals, eliminates the common oil leakage of the jack, and prevents accidents caused by the tilting of heavy objects during the lifting process due to oil leakage. This product is composed of 32 high-precision accessories, which absolutely guarantees the safety of users and the quality assurance of products.

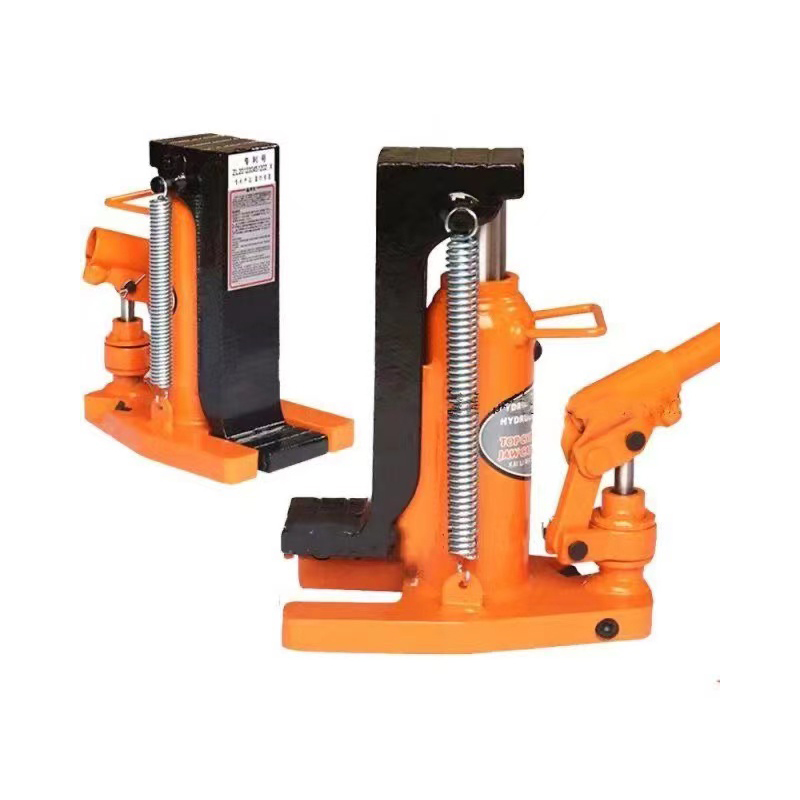

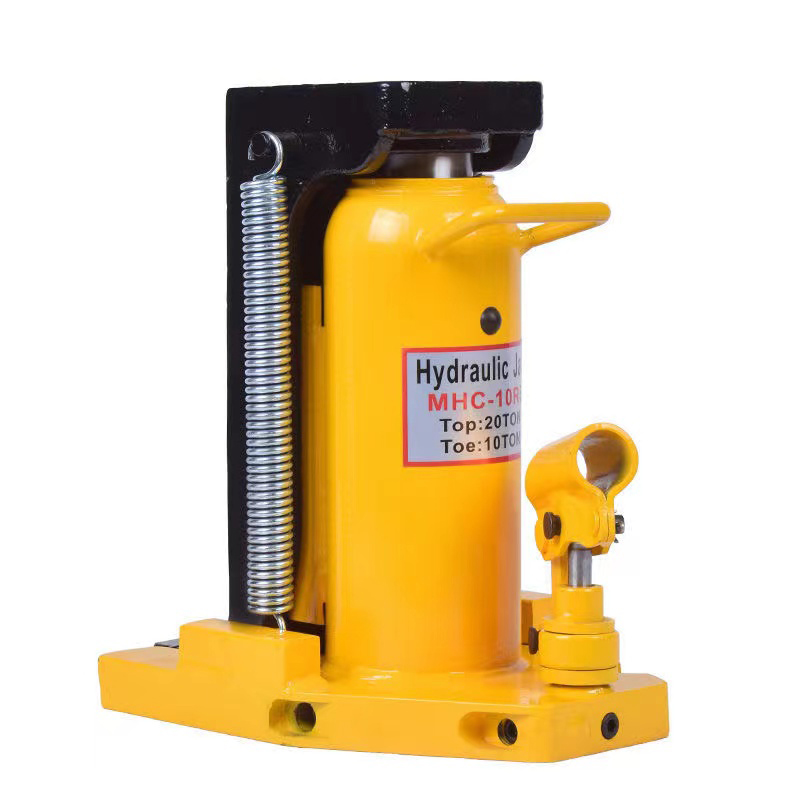

Feature of Hydraulic Toe Jack / Claw Jack:
For use where exceptionally low pick up height is required
Extra wide base for maximum stability
Electrically welded base and cylinder assures strength and eliminates leaks
200° handle socket for operation from any direction
Load can be applied to toe or head
Capacity rated at toe and increases if load applied to head
Complete with overload protection
Not affected by temperature extremes
Tested to over 150% of rated capacities
Instructions:
1.Claw jacks generally have fixed oil for use. Do not use other oil bodies to avoid affecting the normal use of the claw jacks. When refueling, please place the claw jacks in a normal upright state. Refueling until the oil overflows from the filling hole is full of oil.
2.When using, please use the pipe handle to tighten the hydraulic valve bolt first, and then move the hand pump up and down, the jack can be raised, if you want to lower it, please slowly loosen the hydraulic valve bolt to lower it.
Hydraulic Toe Jack | ||||||
Model | Capacity(Ton) | Toe(MM) | Size(MM) | Weight | ||
Toe | Toe/Head | Min Height | Lifting Height | |||
NN-TJ-2.5RS | 2.5 | 5 | 20 | 115 | 210x140x232 | 11 |
NN-TJ-5RS | 5 | 10 | 20 | 148 | 260x200x283 | 24 |
NN-TJ-10RS | 10 | 20 | 25 | 158 | 295x220x322 | 36 |
NN-TJ-15RS | 15 | 30 | 30 | 158 | 305x255x350 | 55 |
NN-TJ-25RS | 25 | 50 | 50 | 158 | 340x285x350 | 75 |
