Magnetic Lifters has strong magnetic path produced by NdFeB magnet which supply permanent power, On and off of the magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply.
Feature:
1) The permanent magnetic lifter adopts high-performance permanent magnet material Nd-Fe-B (Nd-Fe-B) as the core of the product, which makes the product smaller in size, stronger in hoisting and hoisting force, and permanent magnetic force.
2) The permanent magnetic lifter can be used without electricity, saving the trouble of power supply.
3) Permanent magnetic lifter , the optimized magnetic circuit design makes the residual magnetism almost zero.
4) The professionally designed appearance of the permanent magnetic lifter makes the product more beautiful.
Maintenance:
1. The surface of the magnetic lifter should be wiped clean before use to avoid scratches and affect the accuracy.
2. The ambient temperature is -40 ℃ to 50℃, and it is strictly forbidden to knock to prevent the magnetic force from being reduced.
3. After use, coat the working surface with anti-rust oil to prevent rust.

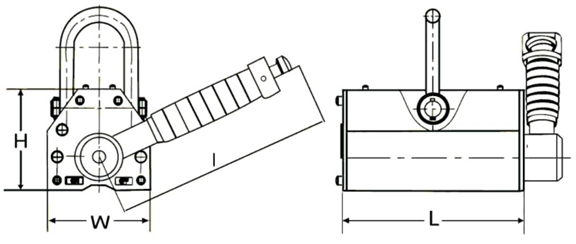

Permanent magnetic lifter | ||||||||||
Item NO. |
| Cylindrical Capacity(kg) | Maximum pull-off force (N) | L(mm) | W(mm) | H(mm) | I(mm) | Weight (kg) |
| Lifting steel plate thickness(mm) |
PML-1 | 100 | 30 | 350 | 91 | 62 | 68 | 160 | 3.65 | NdfeB-N50 | 5-25 |
PML-2 | 200 | 60 | 750 | 135 | 62 | 68 | 205 | 4 | NdfeB-N50 | 11-30 |
PML-4 | 400 | 130 | 1400 | 162 | 88 | 92 | 205 | 10 | NdfeB-N50 | 20-40 |
PML-6 | 600 | 200 | 2100 | 215 | 103 | 116 | 240 | 24 | NdfeB-N50 | 25-50 |
PML-10 | 1000 | 300 | 3500 | 263 | 142 | 136 | 275 | 40 | NdfeB-N50 | 40-80 |
PML-20 | 2000 | 600 | 7000 | 352 | 166 | 165 | 370 | 80 | NdfeB-N50 | 50-100 |
PML-30 | 3000 | 1000 | 10500 | 400 | 166 | 166 | 370 | 89 | NdfeB-N50 | 60-120 |
PML-50 | 5000 | 1500 | 17500 | 527 | 225 | 220 | 590 | 210 | NdfeB-N50 | 80-160 |
