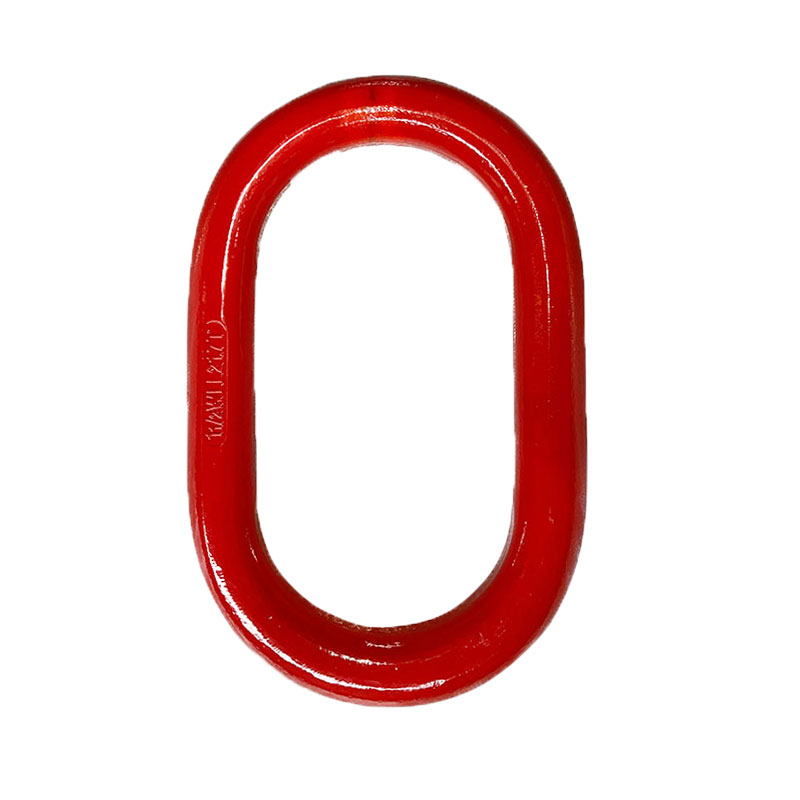

US Type G80 Rigging Master Link For Chain Sling

Master link is mainly used for lifting and hoisting in various industries such as electric power, metallurgy, petroleum, machinery, railway, chemical industry, port, mining, construction, etc. It can also be combined with chain, wire rope, connecting link, hook and other accessories to form chain sling.
Availability:
Quantity:
Inquire Add to Basket

Product Description

Precautions when using:

  1. When the master link is working, the maximum allowable angle of use is 120°.

  2. When the master link is cracked, it is strictly forbidden to repair the lifting ring by welding and heat bending.


The use of the strong ring should be stopped in the following situations during use:

1. The strong ring is twisted and deformed more than 10 degrees.

2. Cracks appear on the surface of the strength ring.

3. The wear of the strength ring body exceeds 10%.

Special Note: When using the operator, during the lifting process, do not stand under the hoisting machinery and hoisting sling.

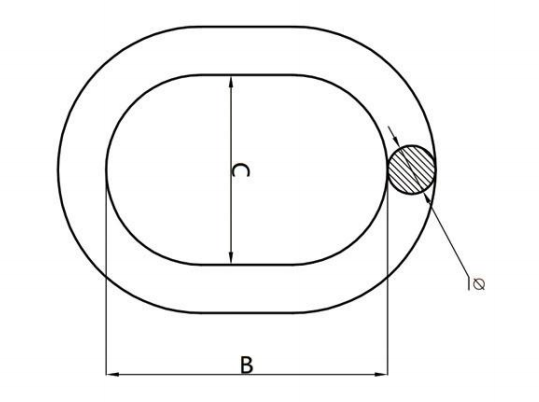

master link drawing

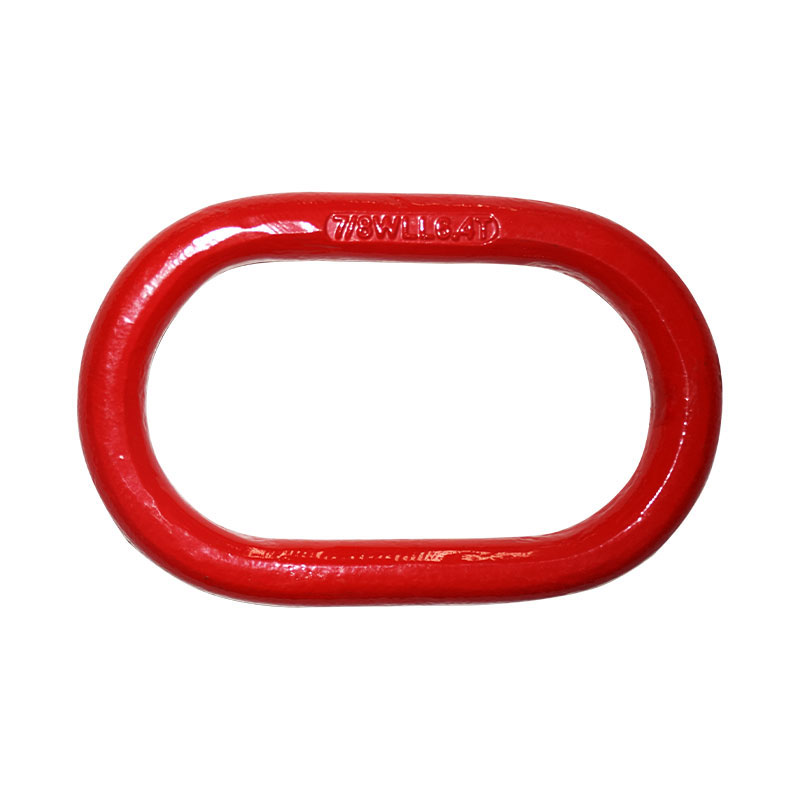

US type forged master link
WLL(T) Size（"）
 A(MM) B(MM) C(MM)
 Weight(KG)
2
 1/2
 14 127 63.5 0.44
3 5/8 16 152 76 0.7
4.75 3/4 19 140 70 0.92
6.4 7/8 22 160 90 1.5
8 7/8 22 178 89 1.55
11 1 25 178 89 2
16 1-1/4 32 220 110 4
21.7 1-1/2 38 270 140 7.2
28.4 1-3/4 45 305 152 11.3
35 2 51 350 175 16.7
45 2-1/4 57 405 203 23.2
50 2-1/2 63 406 203 29.8
60
 2-3/5 68 450 250 39.2


Product Picture Details

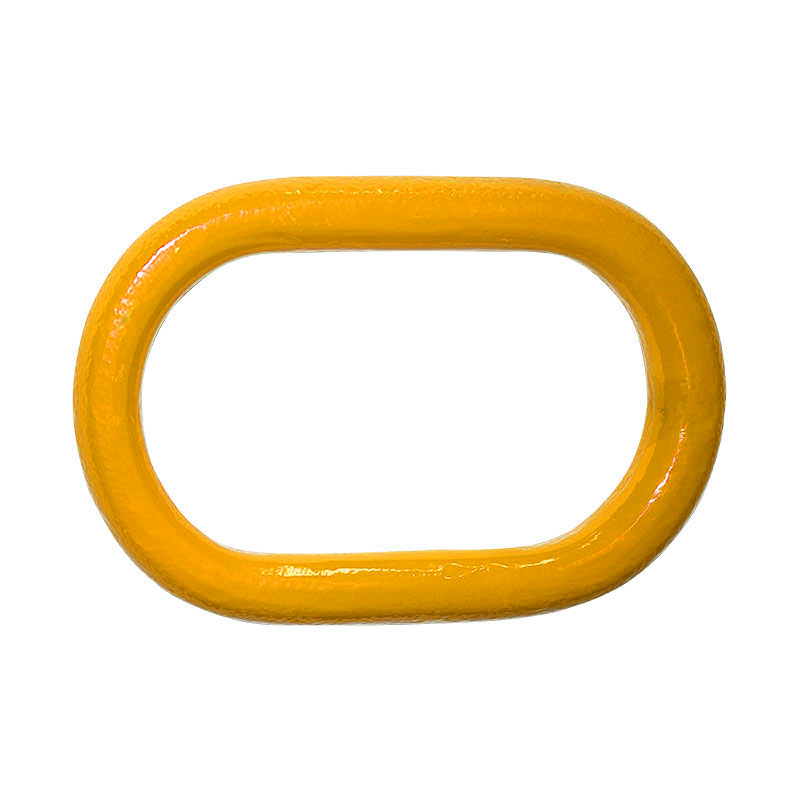

rigging equipment

rigging product
