G80 Rigging European Clevis Sling Hook

• Size - 1.12T-31.5T
• Material - alloy steel
• Surface - powder plastified
• Technology - forged
• Safety Factor - 4:1
Availability:
Quantity:
Product Description

clevis sling hook  is closed die forged. Closed die forging produces consistent dimensions. A closed die forged bow allows for an increased cross section that, when coupled with quench and tempering, enhances strength and ductility. Close tolerance holes and spare parts with good surface finishes are provided and are proven to provide improved fatigue life in actual use. They are fatigue rated as well as load rated. Close pin to hole tolerance has been proven to be critical for good fatigue life.


Features:

1.Widely used in lifting conditions, logging conditions

2.Easier to be connected with chains, wire ropes, webbing, hooks,shackles,etc

3.Stronger performance during working

4.Many sizes can be choosed according to the different daily working

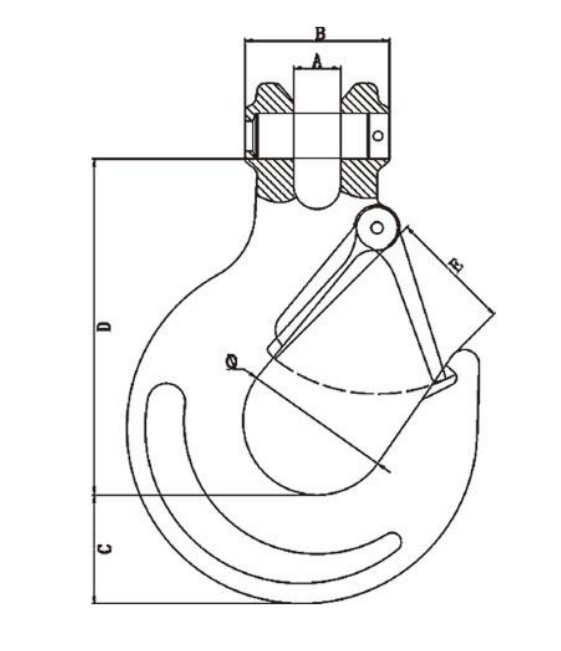

clevis hook



European type clevis sling hook
WLL(T)
B.L(T)
A(MM)
B(MM) M(MM) C(MM) D(MM)
E(MM)
Weight(KG)
1.12
4.8 8.5
32 35 20 76 25 0.28
2
8 10.5 37 37 25 86.4 28 0.5
3.2 12.8 12.5 48 45 34.5 102 38 1.1
5.4 21.6 16.5 57 55 41 124 46 1.8
8 32.8 21.5 70 59.4 54 143 54 4
12.5 50 25 77 79 58 179.4 64 5.4
15 60 26.5 91 100.9 62 212.7 71 9
21.2 84.8 29.5 117 115 75 250 84 14.5

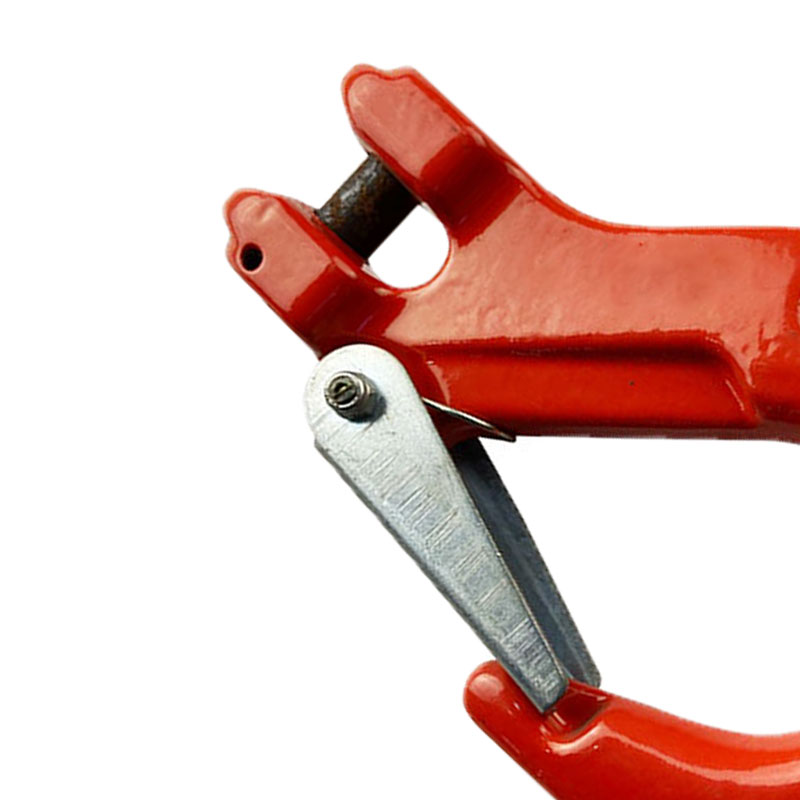

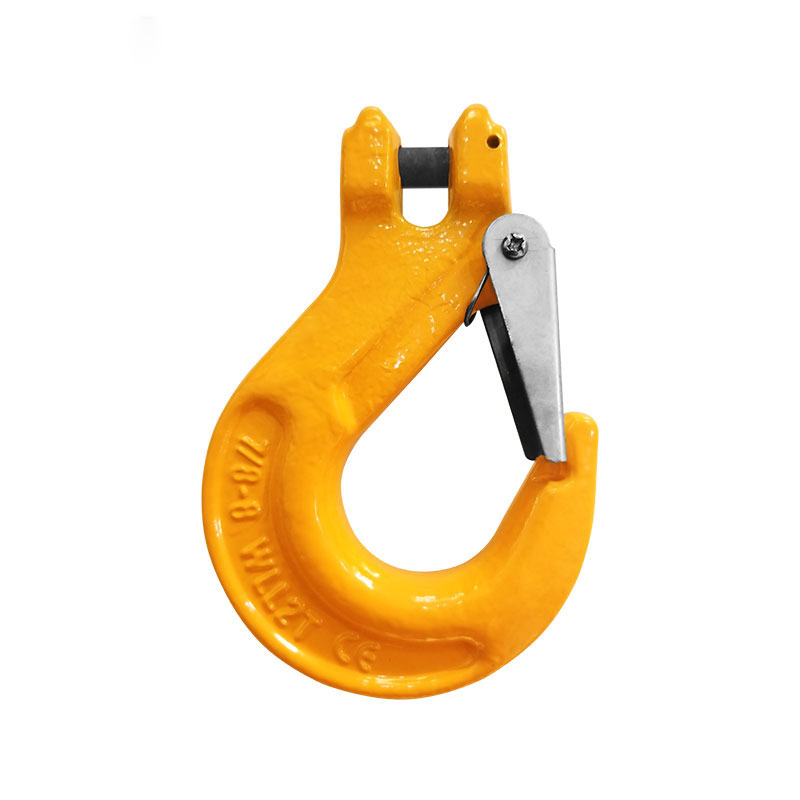

Product Picture Details

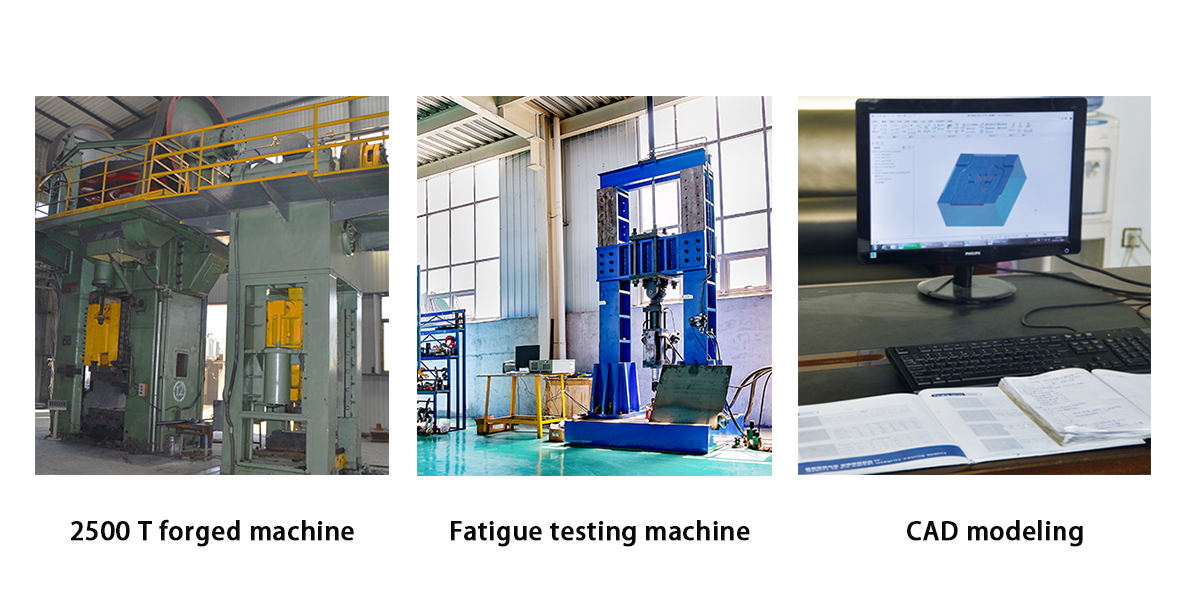

rigging equipment

rigging product
